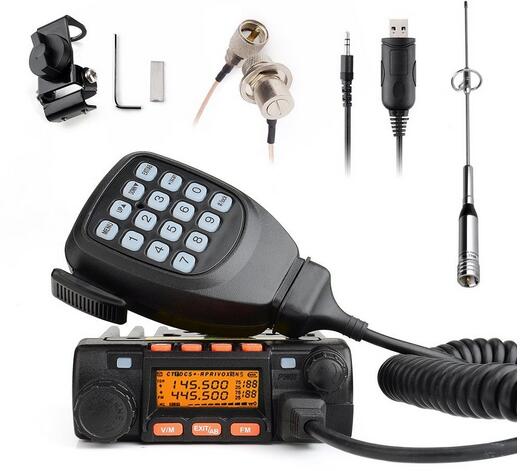

KT-8900 Dual Band VHF136-174/UHF400-480MHz 25W Mobile Transceiver Vehicle Two-Way Radio+Programming Cable+Extension Cable+Hatchback Door Antenna Mount +NAGOYA NL-770S Antenna
Main Functions:
* Frequency Range: VHF 136-174MHZ UHF:400-480MHz
* Output Power: VHF 25Watt, UHF 20Watt
* MSK/5Tone/2Tone/DTMF/CTCSS/DCS
* Optional signal setting
* FM Radio Function
* PTT ID setting
* Auto Lock
* Remote stun
* Remote Kill
* Channel Name set
* 200 Channels to store
Specification:
General
1. Frequency Range: VHF:136~174MHz UHF:/400-480MHz
2. Channel Capacity: 200
3. Channel Spacing: 25KHz 20K 12.5
4. Frequency Stability: 2.5ppm
5. Operating Temperature: -20 ~ + 60
6. Operating Voltage: 13.8V DC 15%
7. Dimension (HxWxD): 98(W)*35(H)*118(L)
8. Weight (with bracket): 1kg
Receiver
1. Sensitivity: 0.25V / 0.35V
2. Channel choice:70dB /60dB
3. Intermodulation: 65dB/60dB
4. Inter-modulation Rejection: 60dB/ 65dB
5. Spurious Rejection: 70dB /70dB
6. Audio Distortion: 5%
7. Audio output power:2W@10%

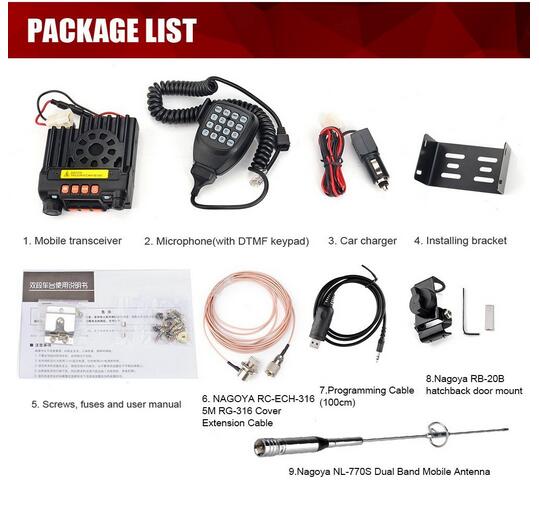

Package Content:
1x Mobile Transceiver
1x Microphone with DTMF Keypad
1x Car Charger
1x Mounting Bracket(Fuse and Screws included)
1x User Manual
1x Nagoya NL-770S Dual Band Mobile Antenna
1x Hexagon Wrench
1x Nagoya RB-20B hatchback door mount
1x NAGOYA RC-ECH-316 5M RG-316 Cover Extension Cable
1x Programming Cable(100cm) |
